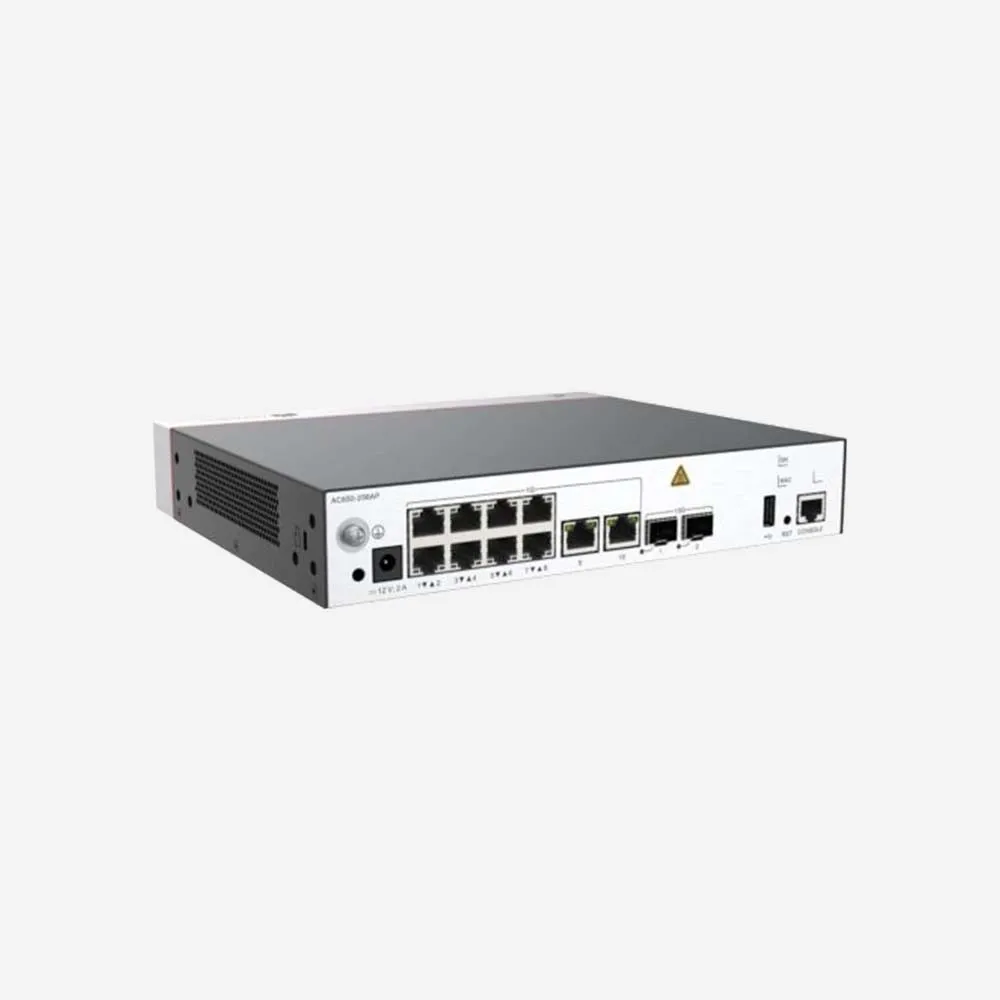

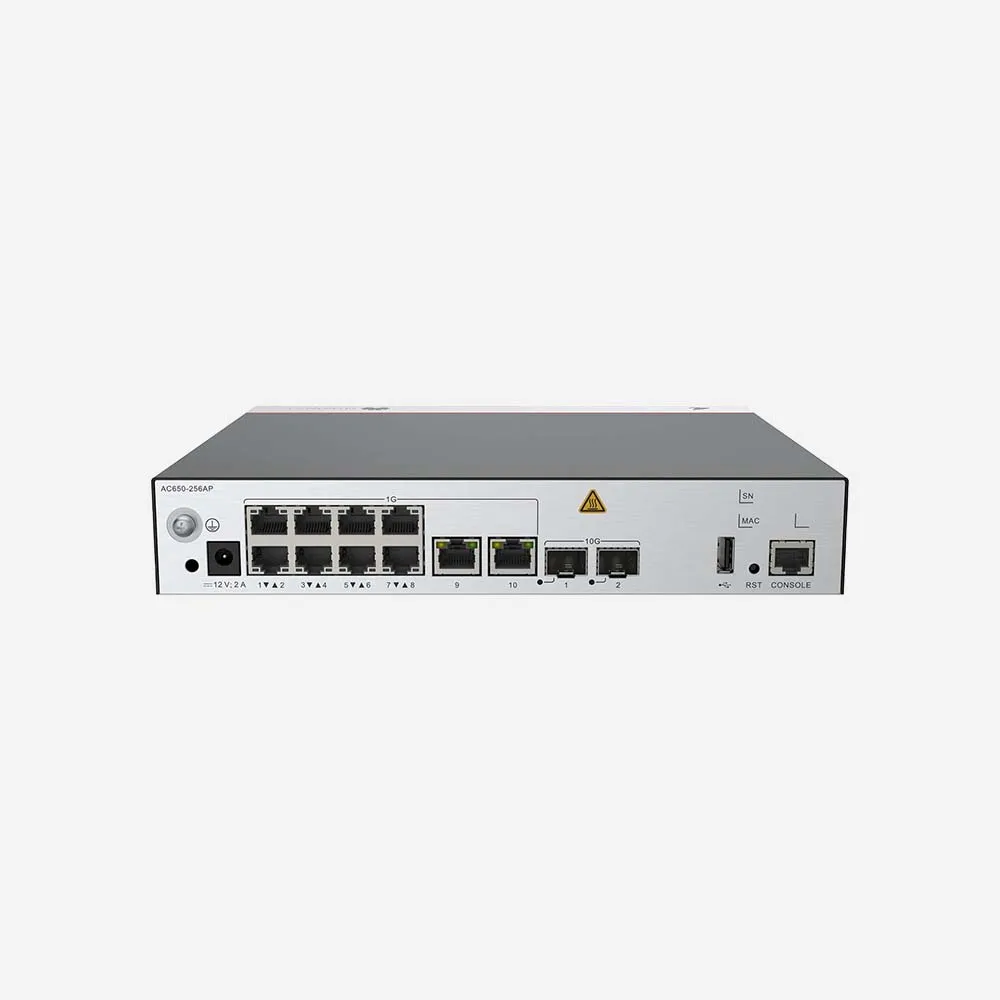

Huawei eKitEngine AC650-256AP Wireless Access Controller

Manages up to 256 wireless access points for enterprise and campus Wi-Fi deployments
10 Gbps high-speed forwarding with integrated Ethernet switching
2×10G SFP+ and 10×GE ports for flexible wired connectivity
Supports Wi-Fi standards including 802.11n/ac/ax (Wi-Fi 6)
Built-in Portal/AAA authentication for secure user access
SmartRadio optimization (load balancing, DFA, EDCA) for better wireless performance
Flexible networking modes (centralized/local, in-path/off-path, bridge/mesh)
Reliable design with backup support and intuitive web-based management

38,000.00 EGP

Chat with us via
Terms & Conditions
Money Back Guarantee (14 day)
Safe & Secure Payment Methods
Fast & Free Shipping

Datasheet

Huawei eKitEngine AC650-256AP.pdf

Technical Specifications – Huawei AC650‑256AP Wireless Access Controller
Device Type	Wireless Access Controller (WAC)
Managed APs	Up to 256 APs
Access Users Supported	Up to 2048 users (varies by mode)
Forwarding Performance	10 Gbps
Ethernet Interfaces	10 × GE (RJ45), 2 × 10GE SFP+
Console Interface	1 × RJ45
USB Interface	1 × USB 2.0 (host)
VLAN Support	Up to 4096 VLANs
MAC Address Entries	8192
ARP Entries	4096
Multicast Forwarding Entries	2048
Routing Entries	IPv4: 4096 \| IPv6: 2048
DHCP IP Pools	64 pools (up to 8192 IPs each)
Local Accounts	1024
Dimensions (H × W × D)	43.6 × 210 × 250 mm
Weight	~1.47 kg
Operating Temp.	0°C – 45°C
Relative Humidity	5% – 95% non‑condensing
Power Consumption	~21–23.6 W
Power Supply	AC/DC adapter
