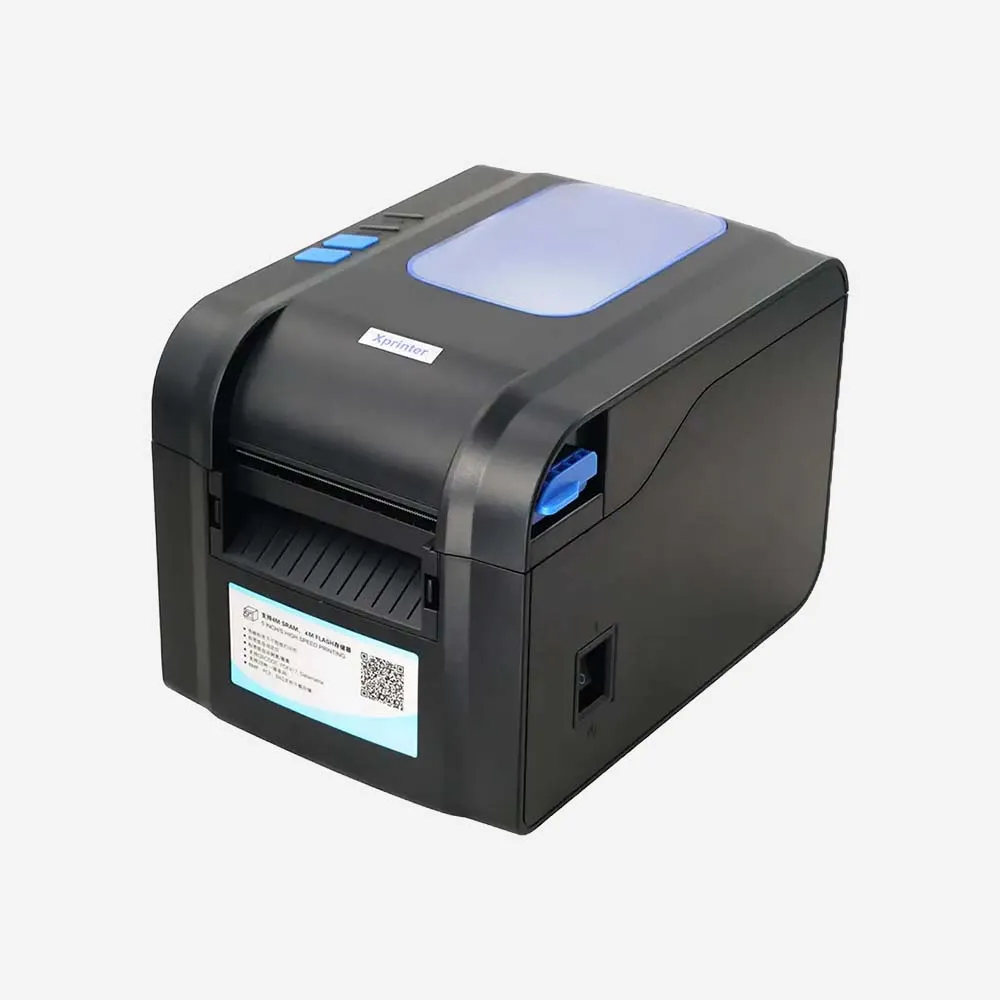

| Model | Xprinter XP-370B |
| Printer Type | Direct Thermal Label Printer |
| Printing Method | Direct Thermal (No Ink or Toner Required) |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Speed | Up to 152 mm/s (6 ips) |
| Maximum Print Width | 108 mm (4.25") |
| Maximum Print Length | 1778 mm (70") |
| Media Width | 20 mm – 118 mm |
| Label Types | Shipping labels, barcode labels, logistics labels, retail labels, warehouse labels, product labels |
| Media Type | Gap labels, black mark labels, continuous labels, folded labels, roll labels |
| Sensor | Adjustable reflective sensor & transmissive gap sensor |
| Memory | 8 MB Flash, 8 MB SDRAM |
| Processor | 32-bit High-Speed CPU |
| Interfaces | USB |
| Bluetooth Version | Bluetooth 4.x (varies by market) |
| Supported Barcode Types (1D) | Code39, Code93, Code128, UPC-A, UPC-E, EAN8, EAN13, Codabar, ITF, MSI, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1 DataBar |
| Supported Barcode Types (2D) | QR Code, PDF417, Data Matrix, Maxicode, Aztec |
| Fonts | Bitmap Fonts, TrueType Fonts, Downloadable Fonts |
| Graphics Support | BMP, PCX, BAS, HEX files |
| Programming Language | TSPL, EPL, ZPL Emulation |
| Paper Loading | Easy Clamshell Design |
| Label Roll Diameter | Up to 127 mm (5") |
| Core Diameter | 25.4 mm (1") |
| Media Thickness | 0.06 – 0.25 mm |
| Ribbon Required | No (Direct Thermal Only) |
| Power Supply | Input: AC 100–240V, 50/60Hz |
| Power Output | DC 24V, 2.5A |
| Operating Temperature | 5°C – 40°C |
| Storage Temperature | -40°C – 60°C |
| Operating Humidity | 25%–85% RH (Non-condensing) |
| Storage Humidity | 10%–90% RH |
| Dimensions | Approx. 212 × 180 × 182 mm |
| Weight | Approx. 1.5 kg |
| Status Indicators | LED Indicator + Multifunction Button |
| Driver Support | Windows, macOS, Linux |
| Mobile Support | Android & iOS (Bluetooth Printing) |
| SDK | Android SDK, iOS SDK |
| Software | Label Editing Software Included |
| Command Emulation | TSPL / EPL / ZPL Compatible |
| Auto Calibration | Yes |
| Auto Paper Detection | Yes |
| Printing Direction | Bidirectional |
| Applications | E-commerce, Courier Shipping, Warehousing, Retail, Inventory, Healthcare, Manufacturing |
