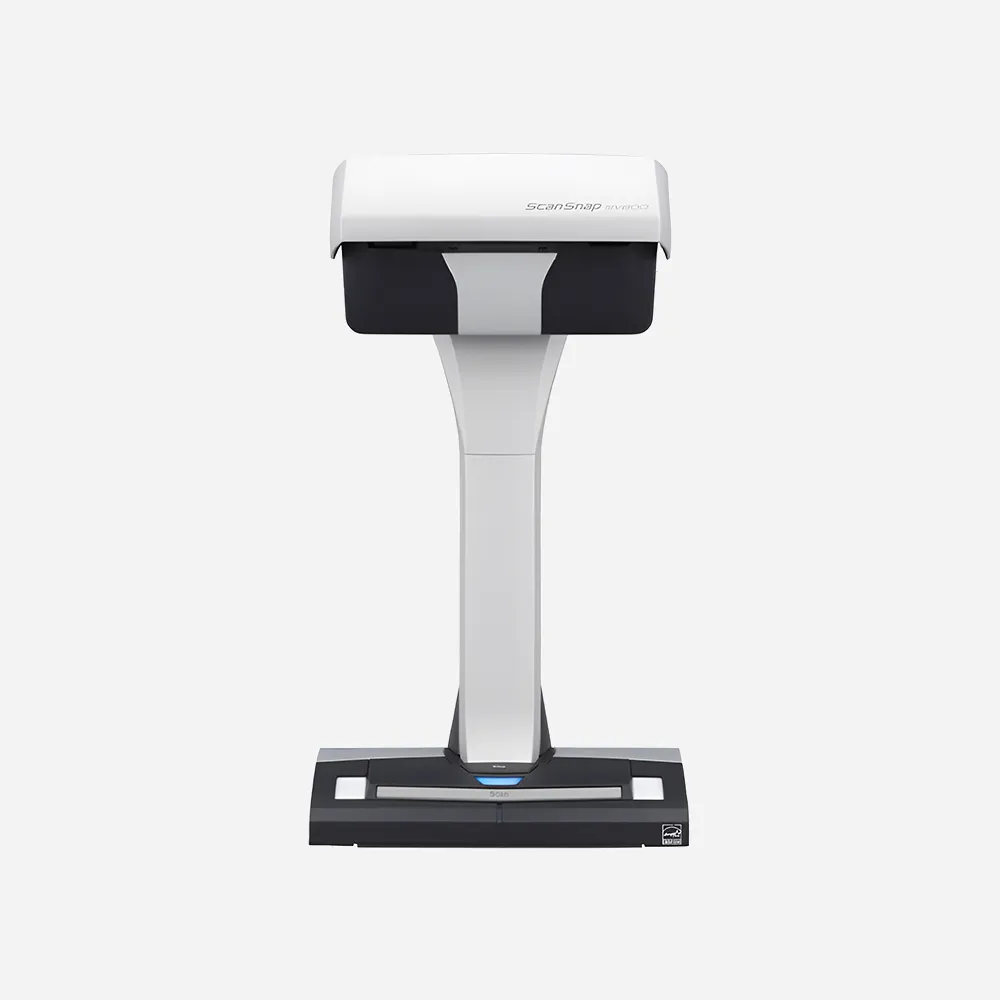

| Model | ScanSnap SV600 |
| Scanner Type | Contactless / Overhead system |
| Scanning Modes | Colour, Greyscale, Monochrome, Automatic detection |
| Image Sensor | Colour CCD x 1 with Lens reduction optics |
| Light Source | White LED + Lens illumination × 2 |
| Optical Resolution |
Horizontal: 285 – 218 dpi
Vertical: 283 – 152 dpi
|
| Scanning Speed (A3 Landscape) |
Normal 3 seconds / page (Colour/Greyscale 150 dpi, Mono 300 dpi)
Better 3 seconds / page (Colour/Greyscale 200 dpi, Mono 400 dpi)
Best 3 seconds / page (Colour/Greyscale 300 dpi, Mono 600 dpi)
Excellent 3 seconds / page (Colour/Greyscale 600 dpi, Mono 1,200 dpi)
|
| Document Size – Maximum | 432 × 300 mm (17.0 × 11.8 in.) |
| Document Size – Minimum | 25.4 × 25.4 mm (1 × 1 in.) |
| Document Thickness | 30 mm or less |
| Scan Start Methods |
Normal scan, Timed interval scan, Page turning detection
|
| Interface | USB 2.0 / USB 1.1 (Type-B) |
| Image Processing Functions |
Deskew by text, Automatic paper size detection,
Automatic rotation, Automatic colour detection,
Book image correction (curvature), Multiple document detection
|
| Power Requirements | AC 100 – 240 V, 50/60 Hz |
| Power Consumption |
Operating 20 W or less,
Sleep mode 2.6 W or less,
Standby 0.4 W or less
|
| Operating Temp & Humidity |
Temperature: 5 – 35 °C
Humidity: 20% – 80% (non-condensing)
|
| Dimensions (W × D × H) | 210 × 156 × 383 mm |
| Weight | Approx. 3 kg |
| Environmental Compliance | ENERGY STAR® / RoHS / Ecodesign |
| Driver Support | ScanSnap specific driver (no TWAIN / ISIS support) |
