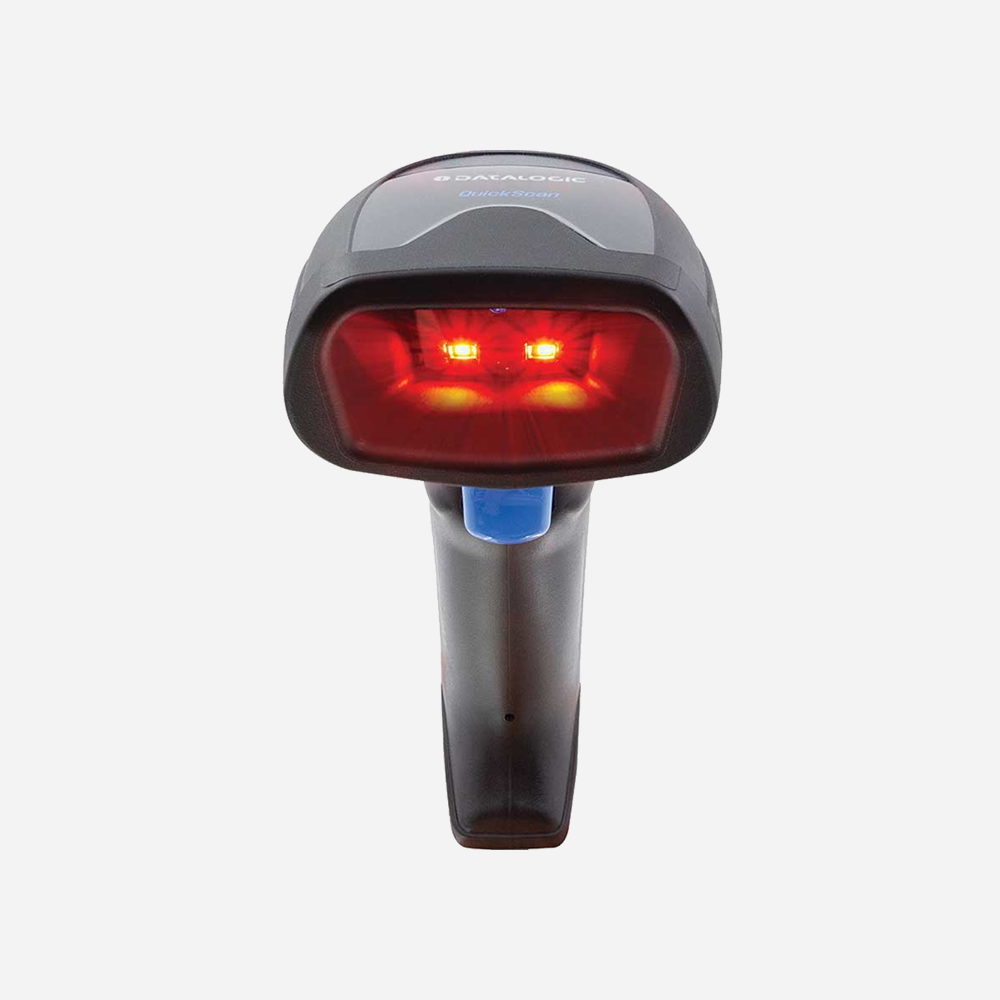

Datalogic QuickScan QD2220-BKK1S Wired Barcode Scanner

This product has no valid combination.

Technical Specifications – Datalogic QuickScan I QD2220
Scanner Type	Handheld 1D Linear Imager Barcode Scanner
Scan Technology	CCD / Linear Imaging with Red LED
Scanning Capability	All standard 1D barcodes including GS1 DataBar
Scan Speed	Up to 400 scans per second
Motion Tolerance	Up to 40 in/s (1016 mm/s)
Reading Angles	Pitch ±65° / Skew ±65° / Roll ±45°
Minimum Resolution	4 mil (0.10 mm) Code 39
Maximum Resolution	20 mil (0.51 mm)
Minimum Print Contrast	15%
Interface	USB (Plug-and-Play)
Input Voltage	5 VDC
Power Consumption	165 mA operating / 40 mA standby
Good-Read Indicators	Beeper, LED indicator, Datalogic Green Spot
Ingress Protection	IP42
Drop Resistance	1.5 m (5 ft) to concrete
Ambient Light Immunity	Up to 120,000 lux
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Dimensions	15.6 × 6.7 × 10.7 cm
Weight	Approx. 123 g
Included in Kit	Scanner, USB cable, stand
