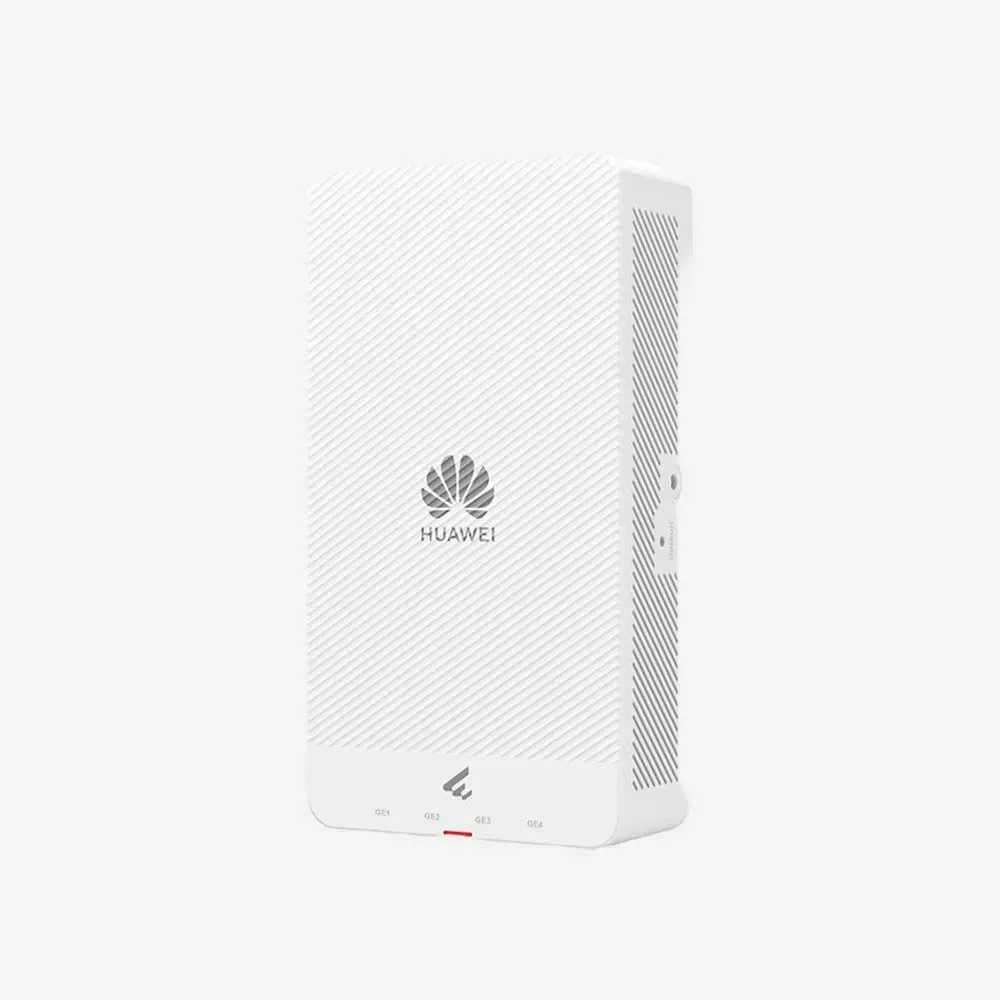

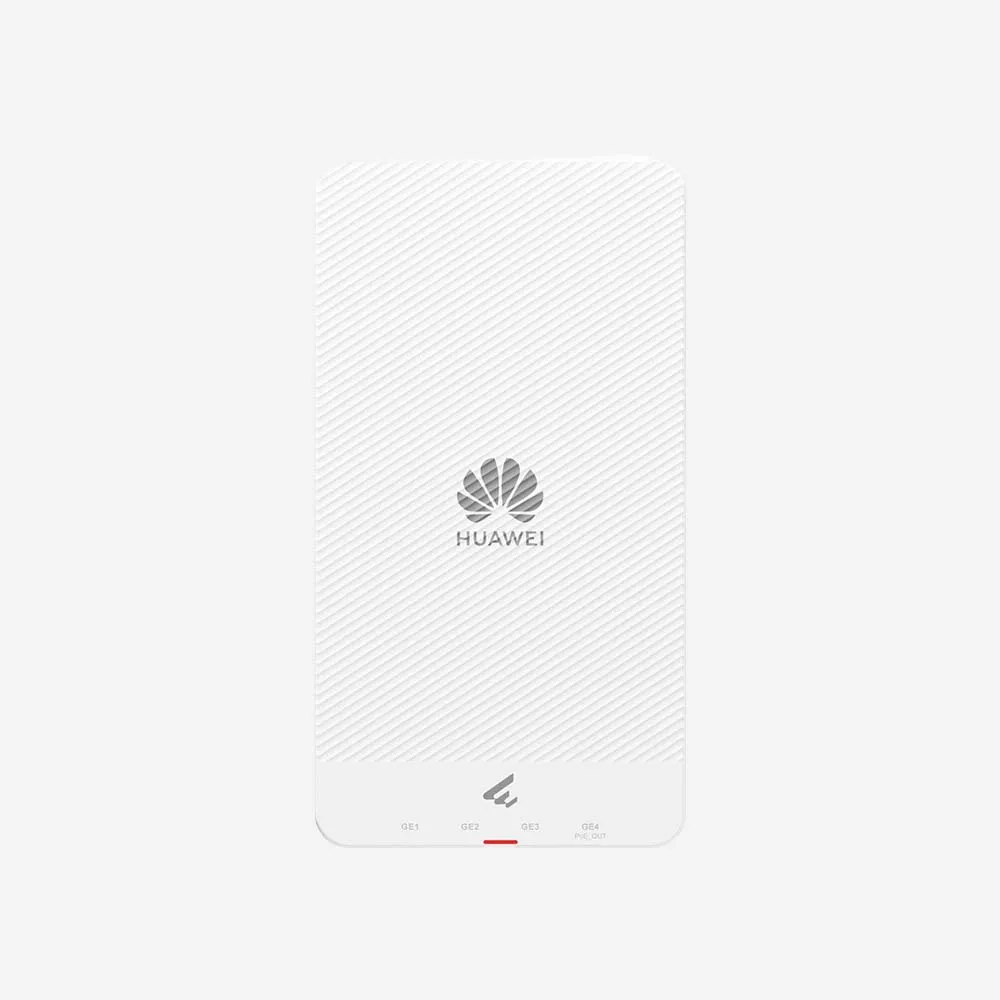

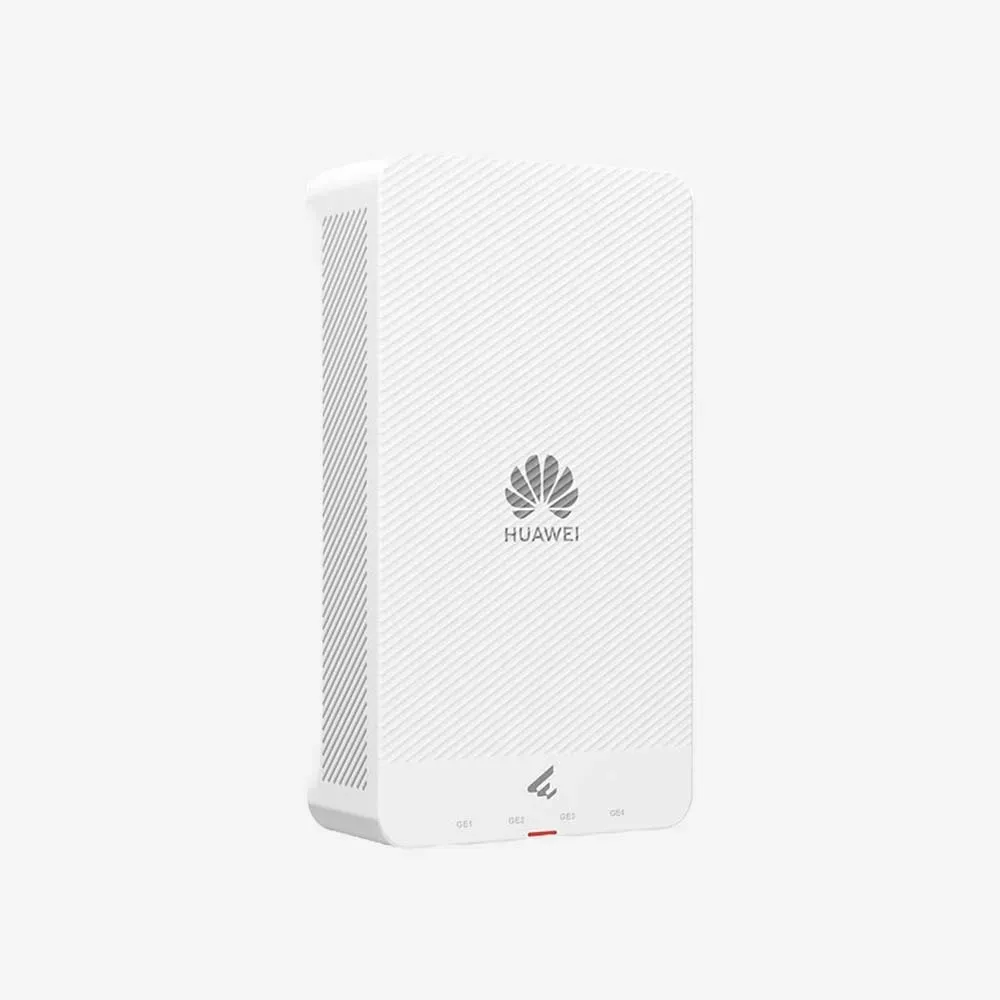

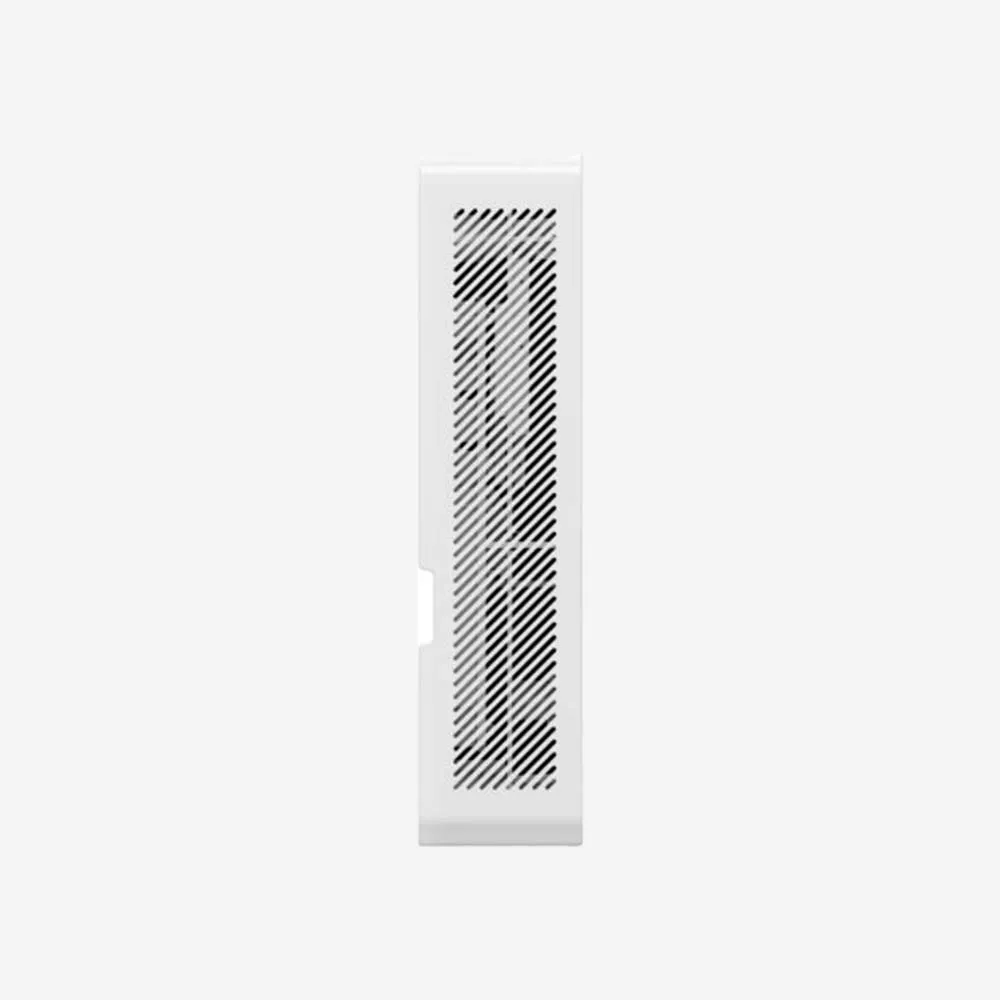

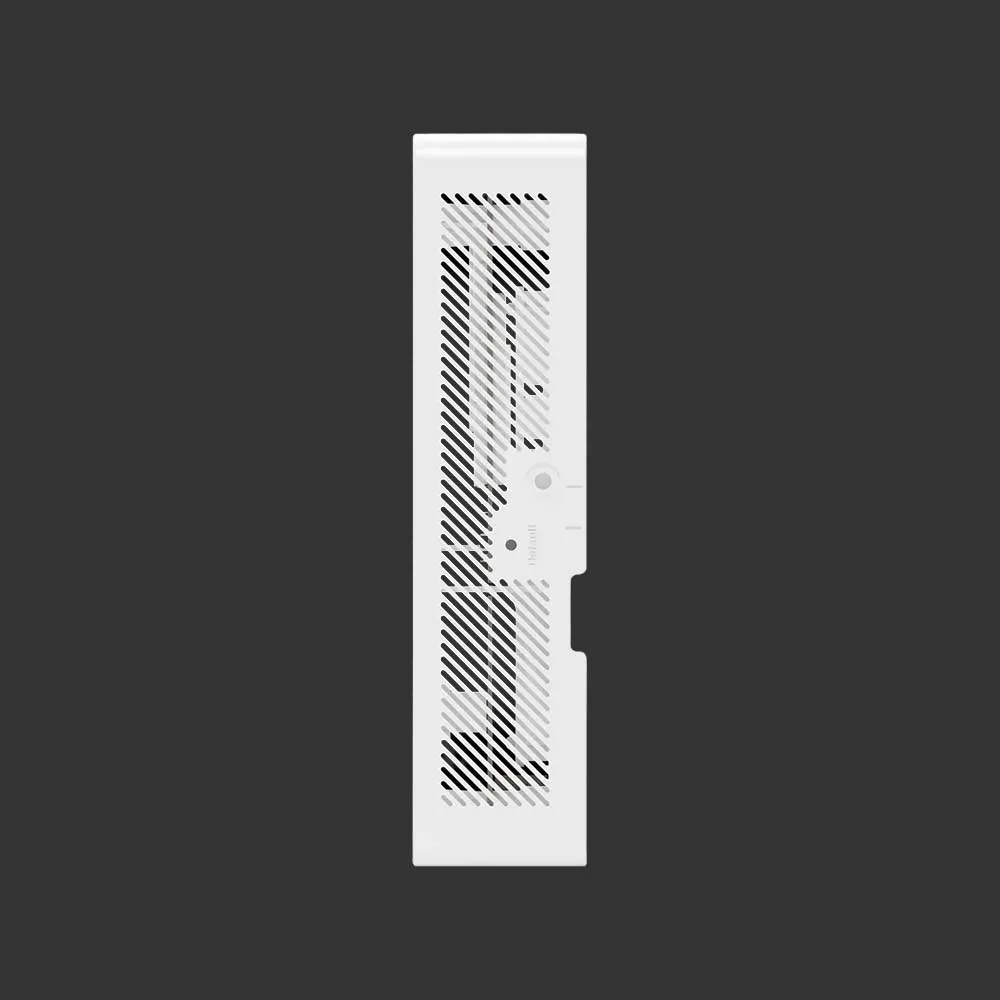

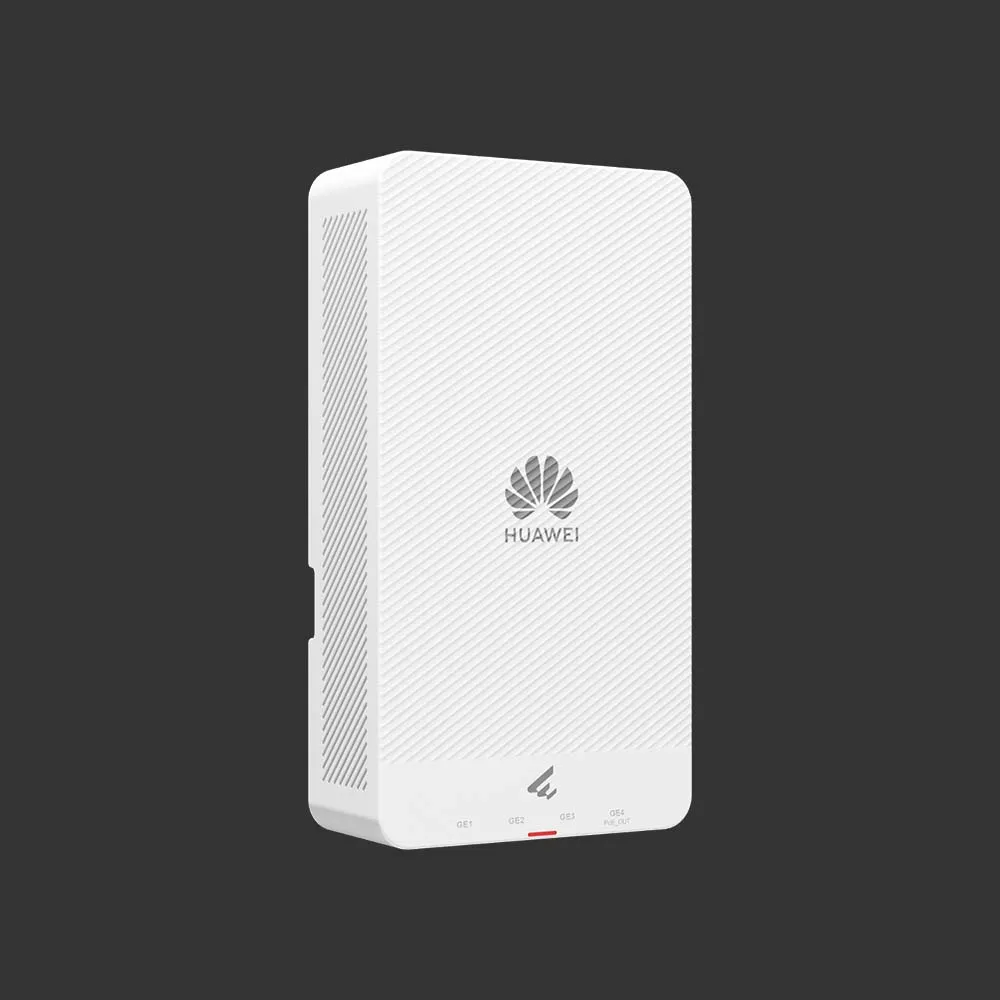

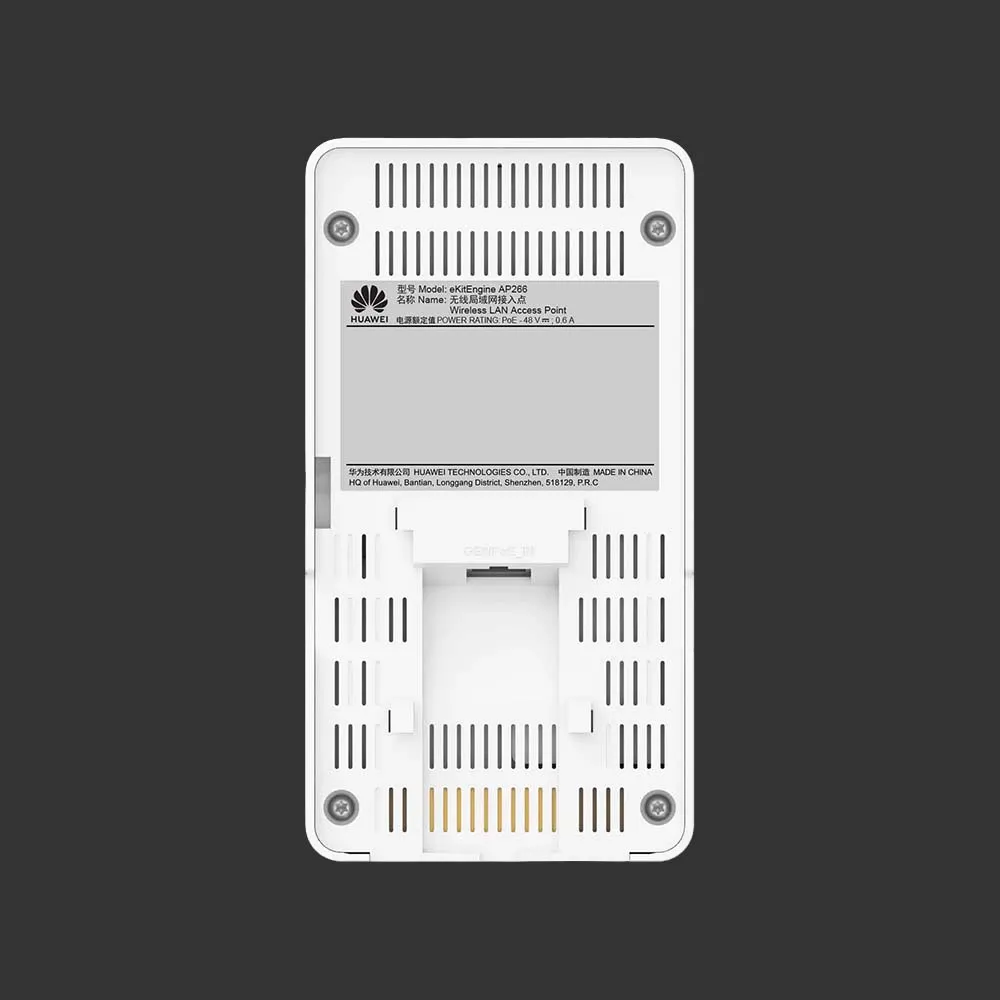

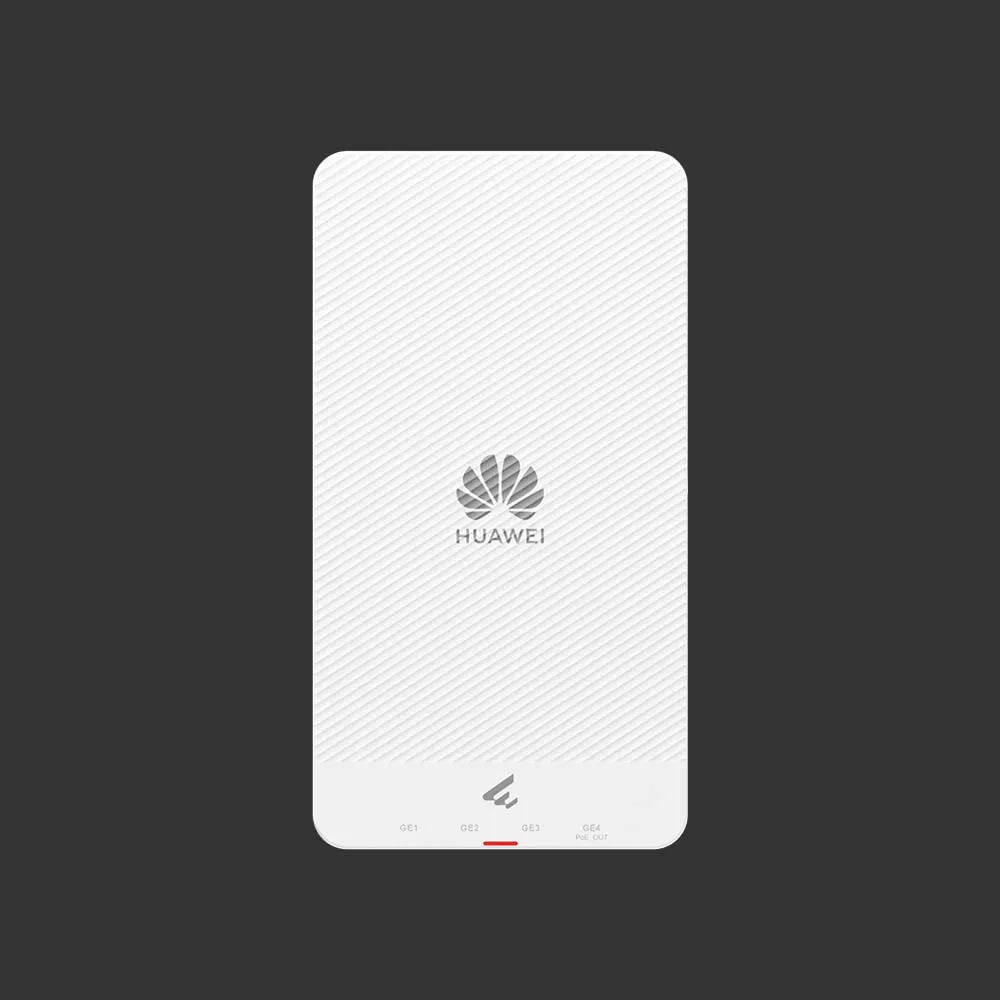

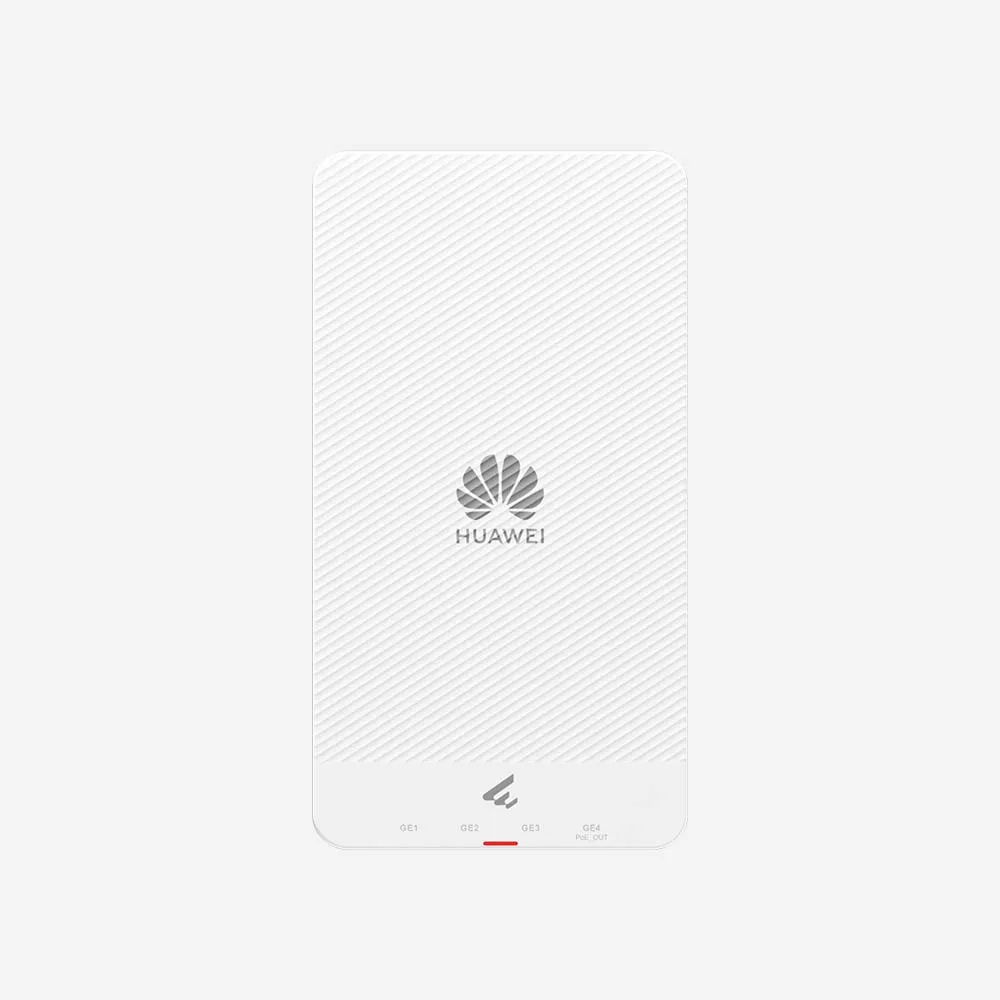

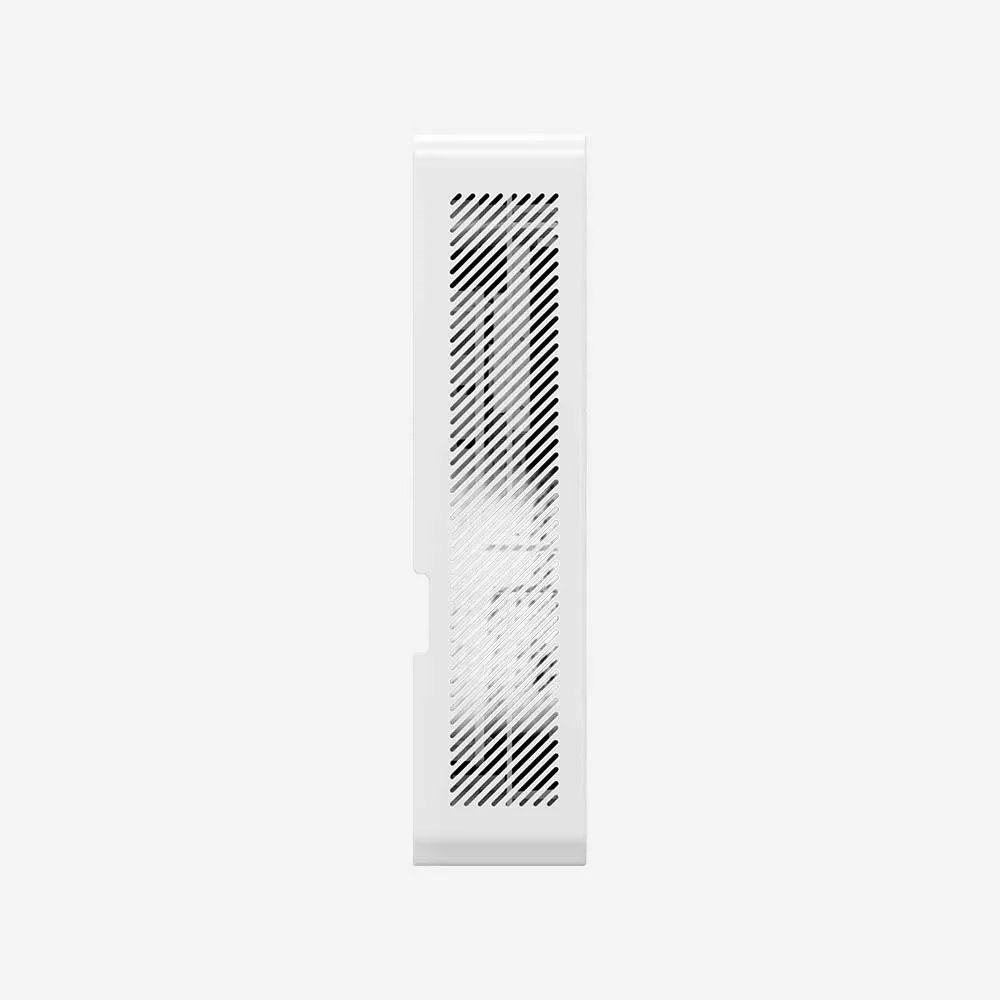

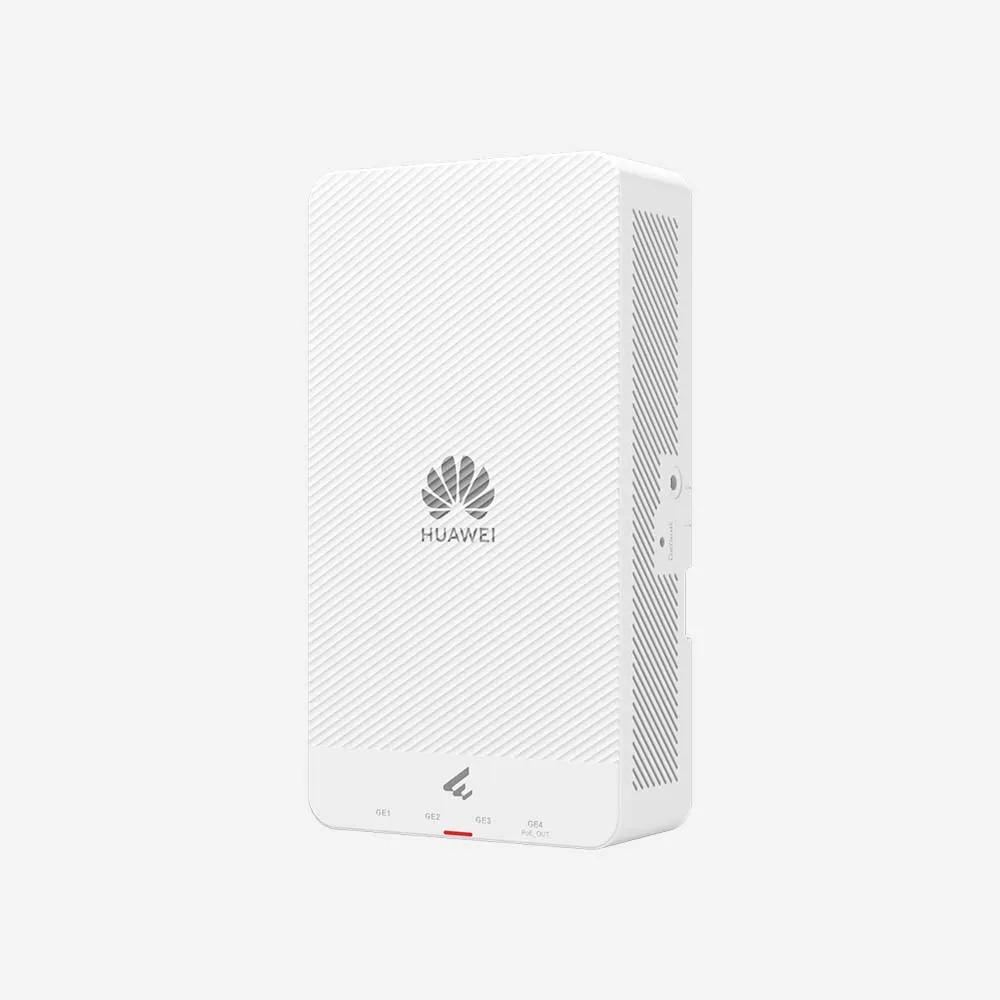

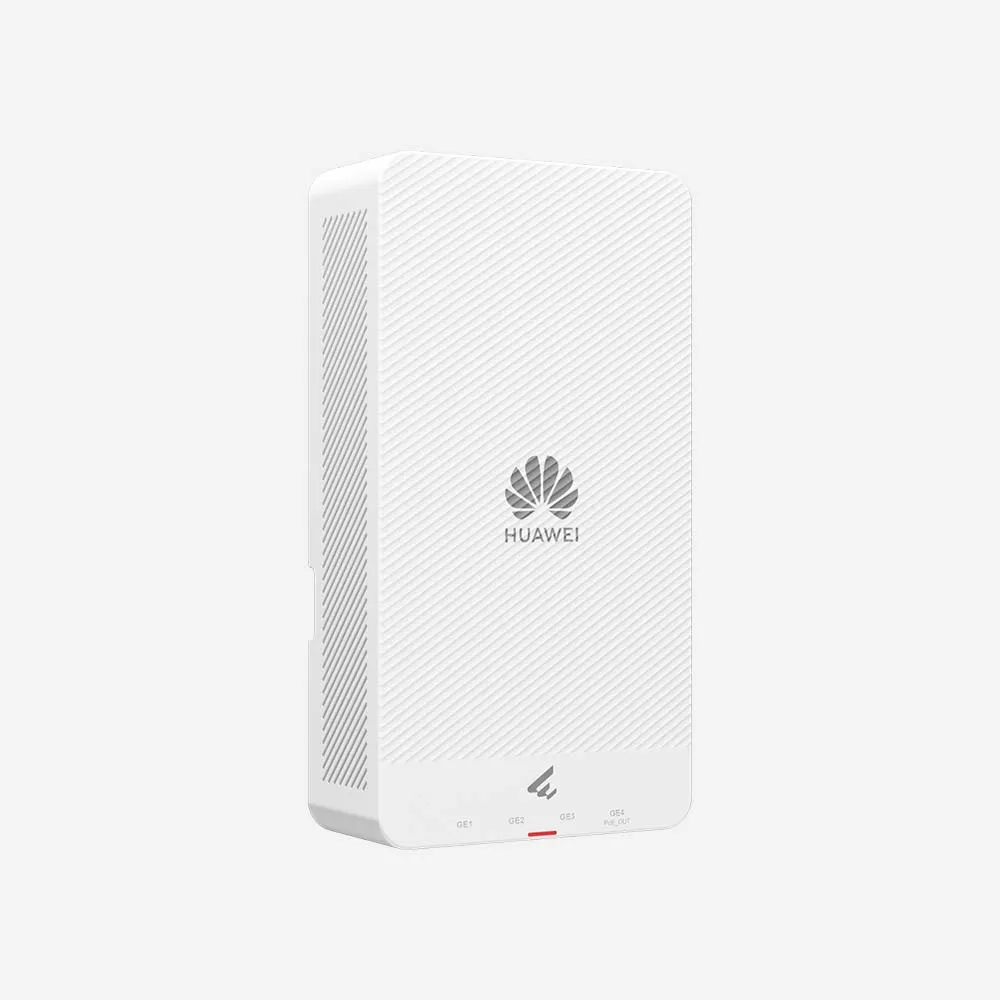

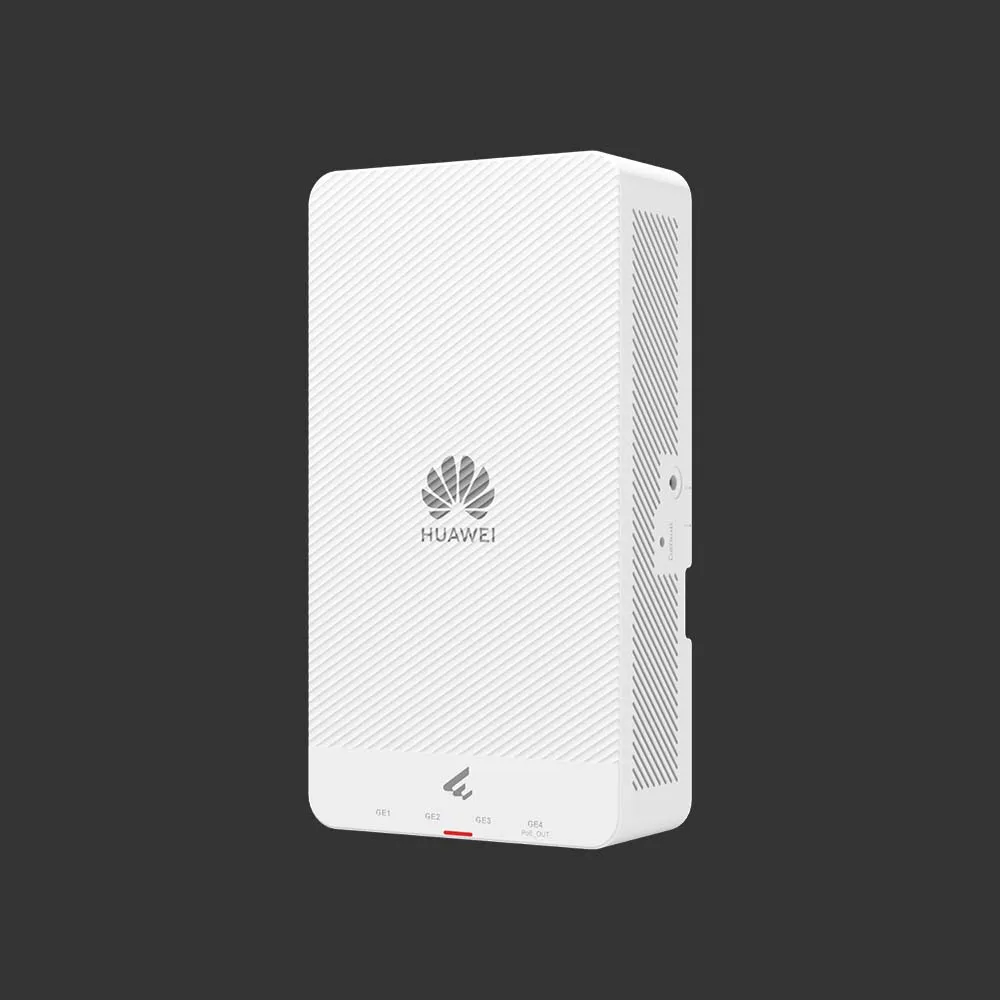

Huawei eKitEngine AP266 5-Ports Wi-Fi 6 Wall Plate Wireless Access Point

(0 review)
  • Dual-band Wi‑Fi 6 access point, up to 2.975 Gbps

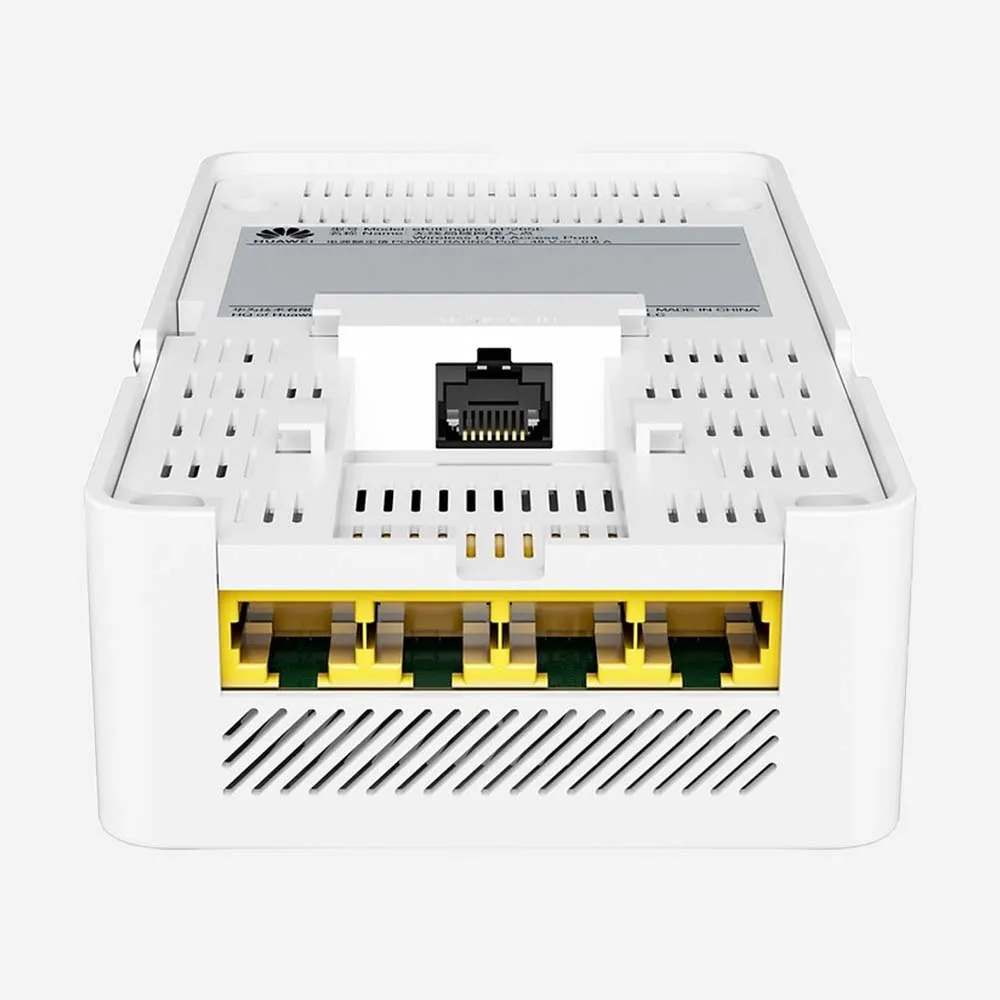

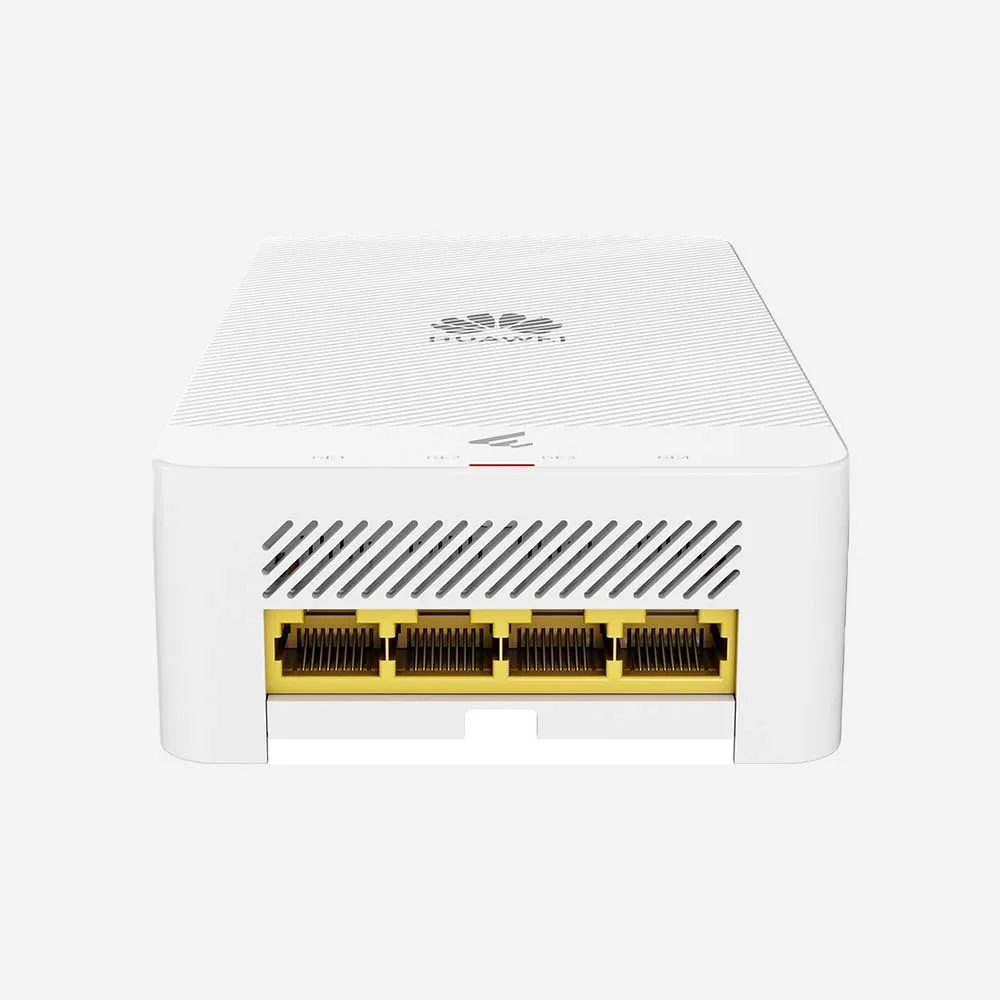

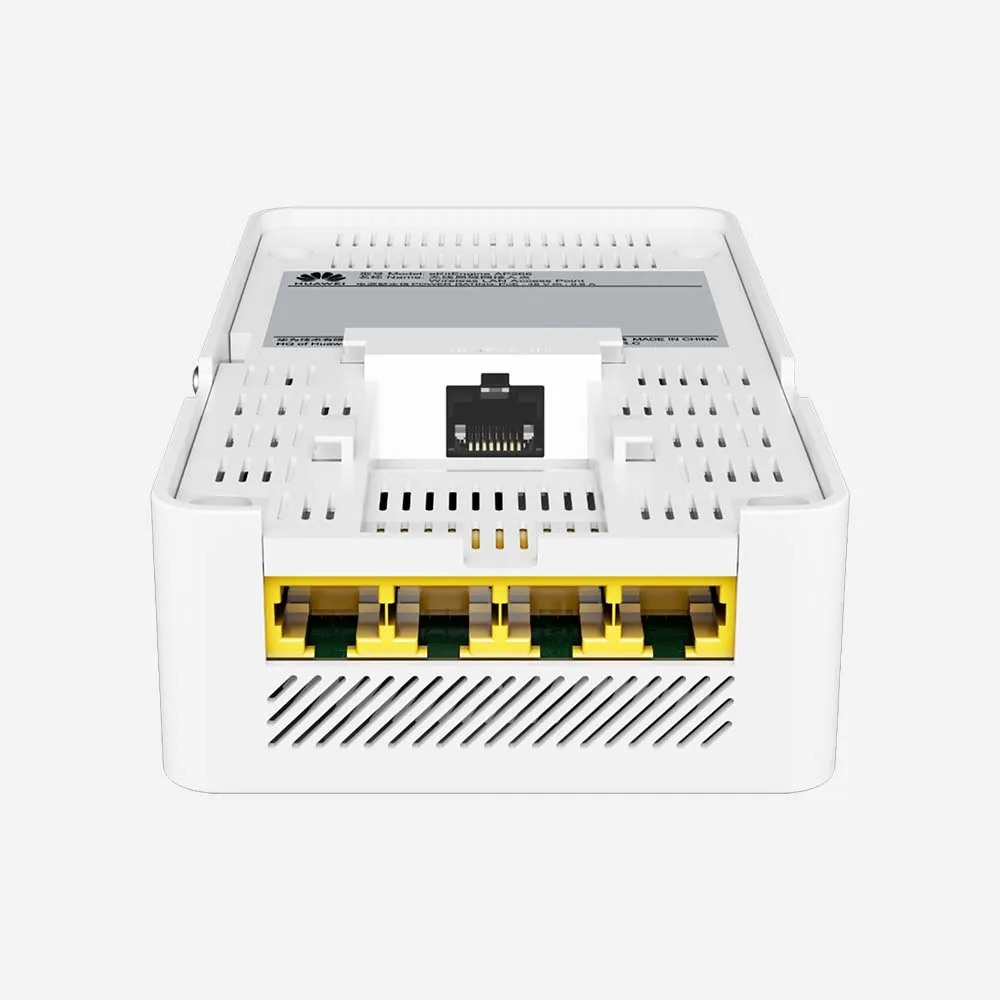

  • Wall-plate design with 1 uplink and 4 downlink Gigabit ports
  • Smart antennas with MU‑MIMO, supports up to 128 users

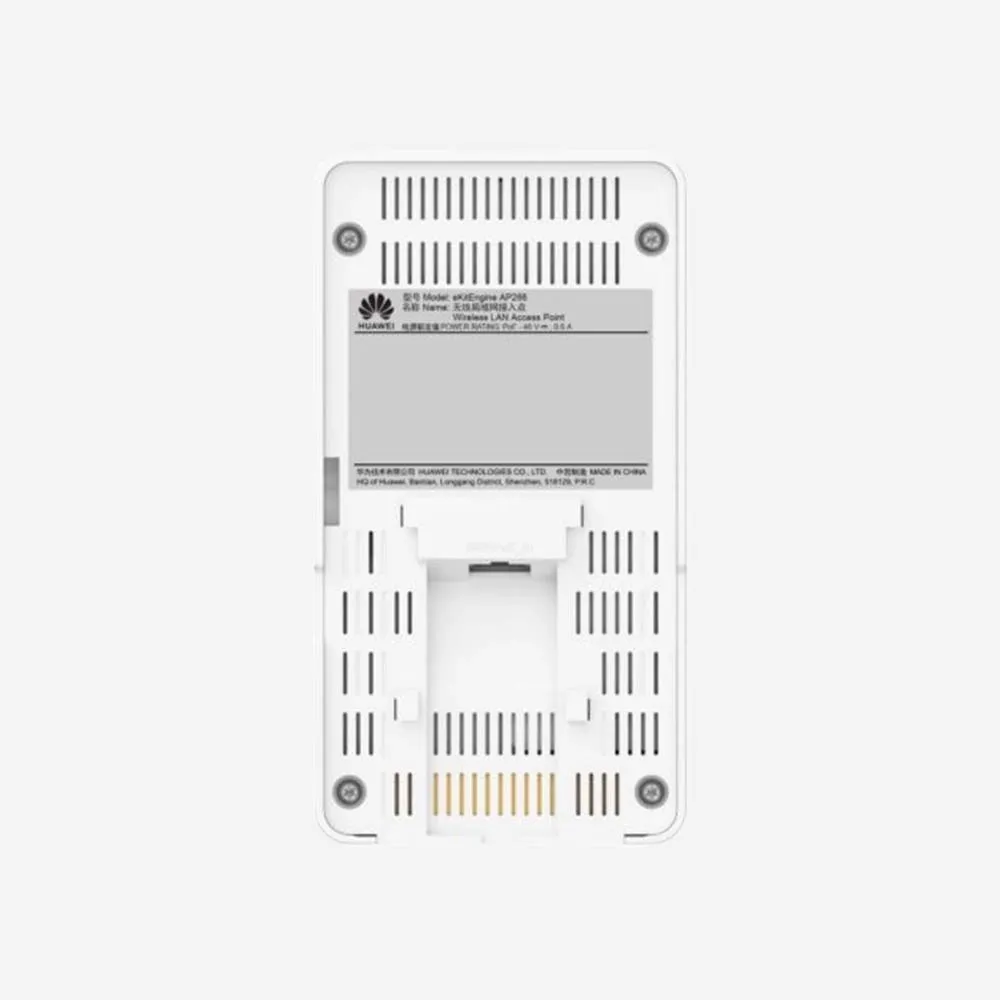

  • Flexible mounting and PoE powered for easy installation
5,200.00 EGP 5,200.00 EGP

  • Brand
 Add to basket Buy now
Add to wishlist
Chat with us via
Terms & conditions
Fast delivery within 24 hours.
Free returns within 14 days of your purchase.
Trusted delivery with Aramex.
Brand: Huawei
Datasheet
Huawei eKitEngine AP266 Wireless Access Point Datasheet.pdf
Technical Specifications
Product TypeWi‑Fi 6 (802.11ax) Dual‑Band Wall Plate Access Point
Wi‑Fi Standard802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
Maximum Data RateUp to 2.975 Gbps (combined)
Frequency Bands2.4 GHz & 5 GHz
Spatial Streams4 (2×2 on each band)

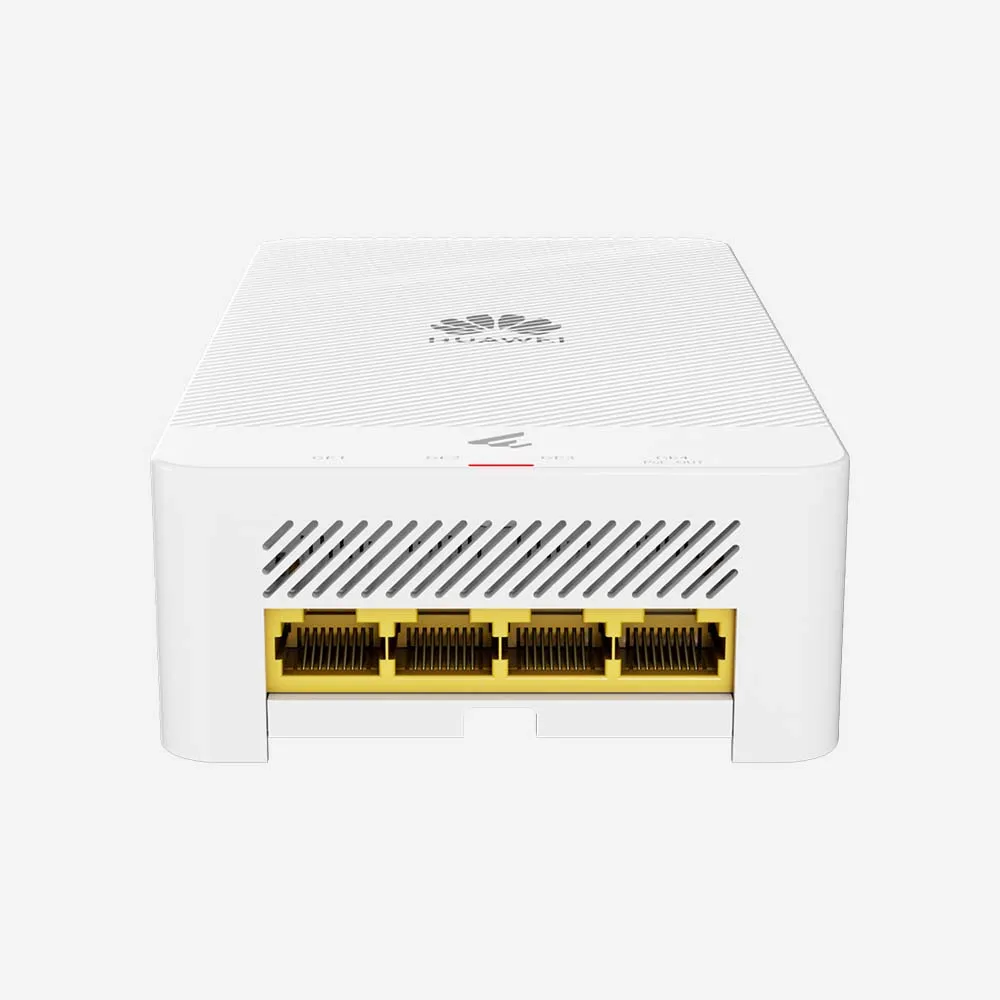

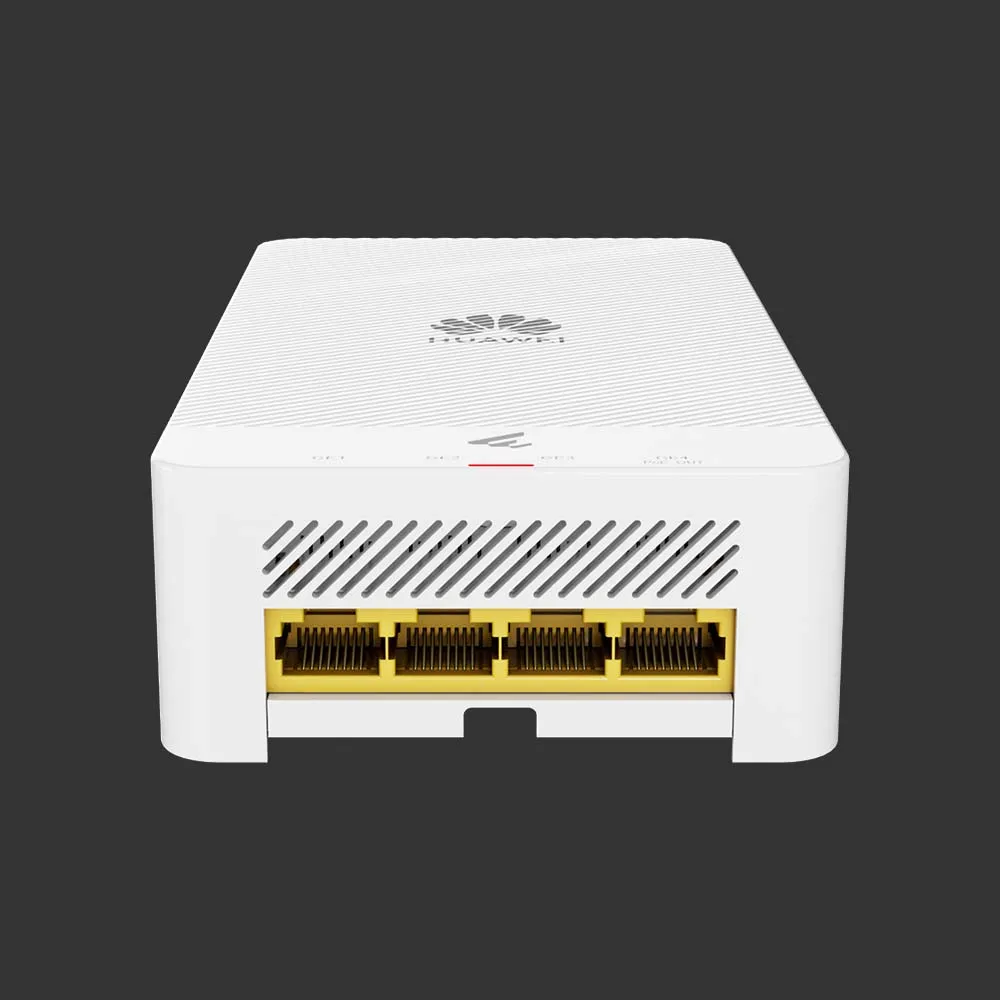

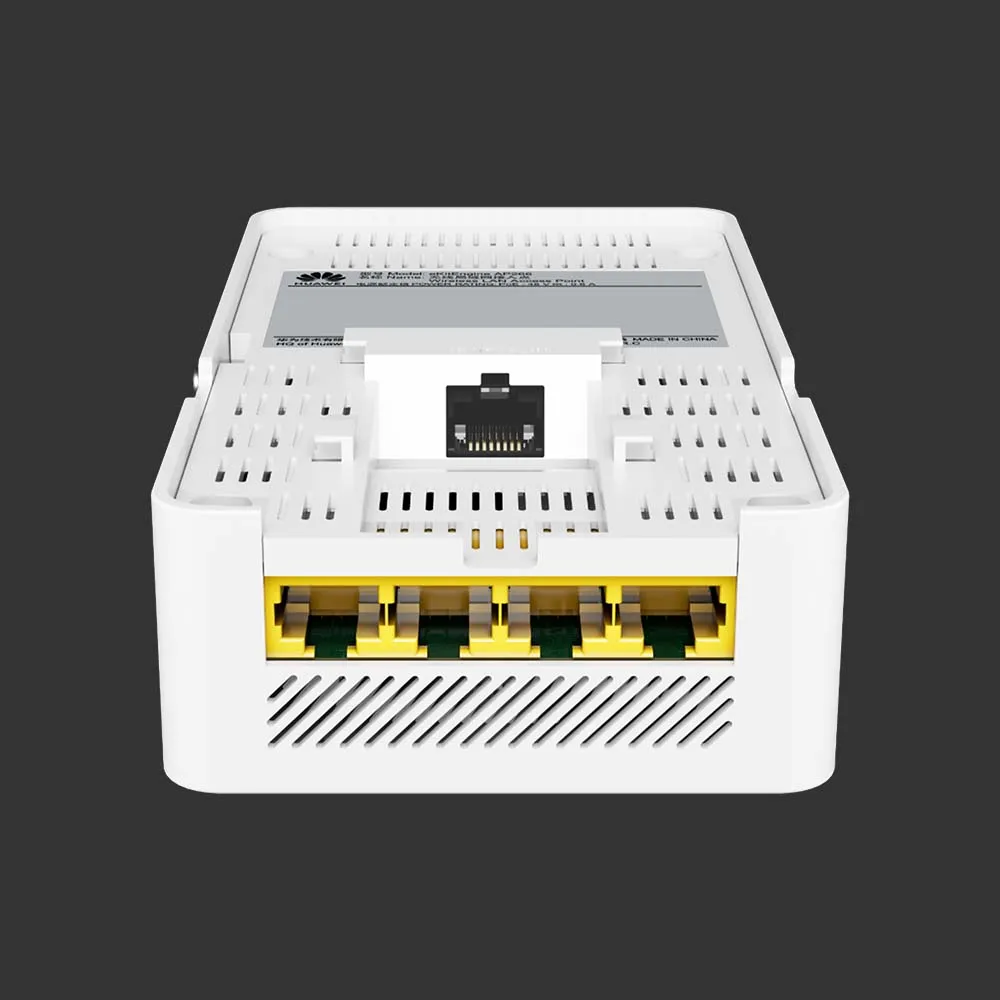

Ports1× GE uplink, 4× GE downlink (1 port supports PoE OUT)
PoE SupportIEEE 802.3at/af (PoE IN), PoE OUT supported
Power ConsumptionMax ~9.4 W (excluding PoE OUT)
AntennaBuilt‑in smart antennas; 2.4 GHz & 5 GHz ~4 dBi gain
Maximum SSIDs16
Max Concurrent Clients128 clients
Dimensions (W×H×D)86 × 160 × 38 mm
Weight~0.23 kg
Operating Temp.0 °C to 40 °C
Storage Temp.–40 °C to +70 °C
Humidity5 % to 95 % (non‑condensing)
SecurityWEP, WPA/WPA2/WPA3, 802.1X, DTLS, ACL, VLAN
ManagementWeb UI, WAC, Huawei eKit App, Huawei SNC Cloud
